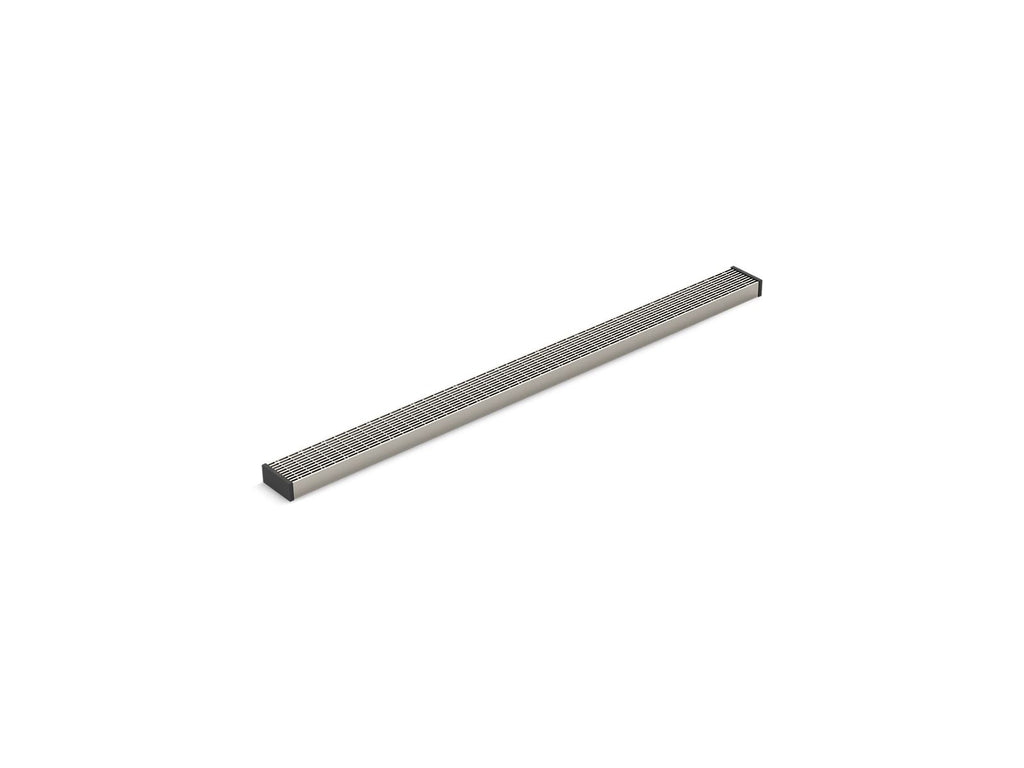

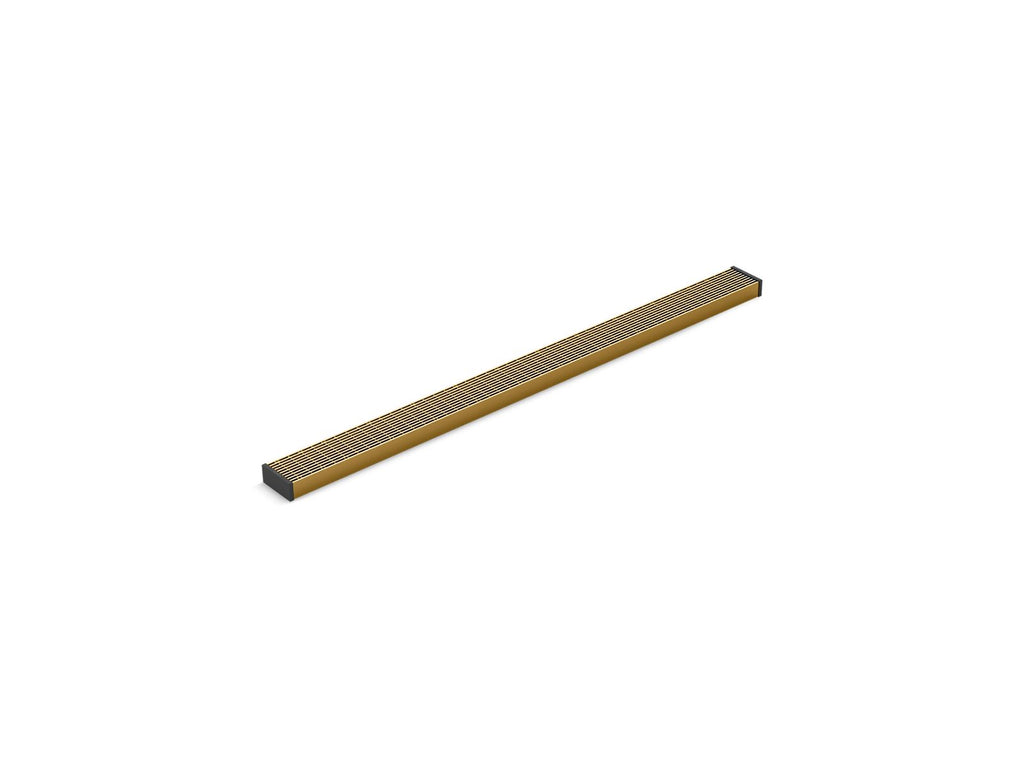

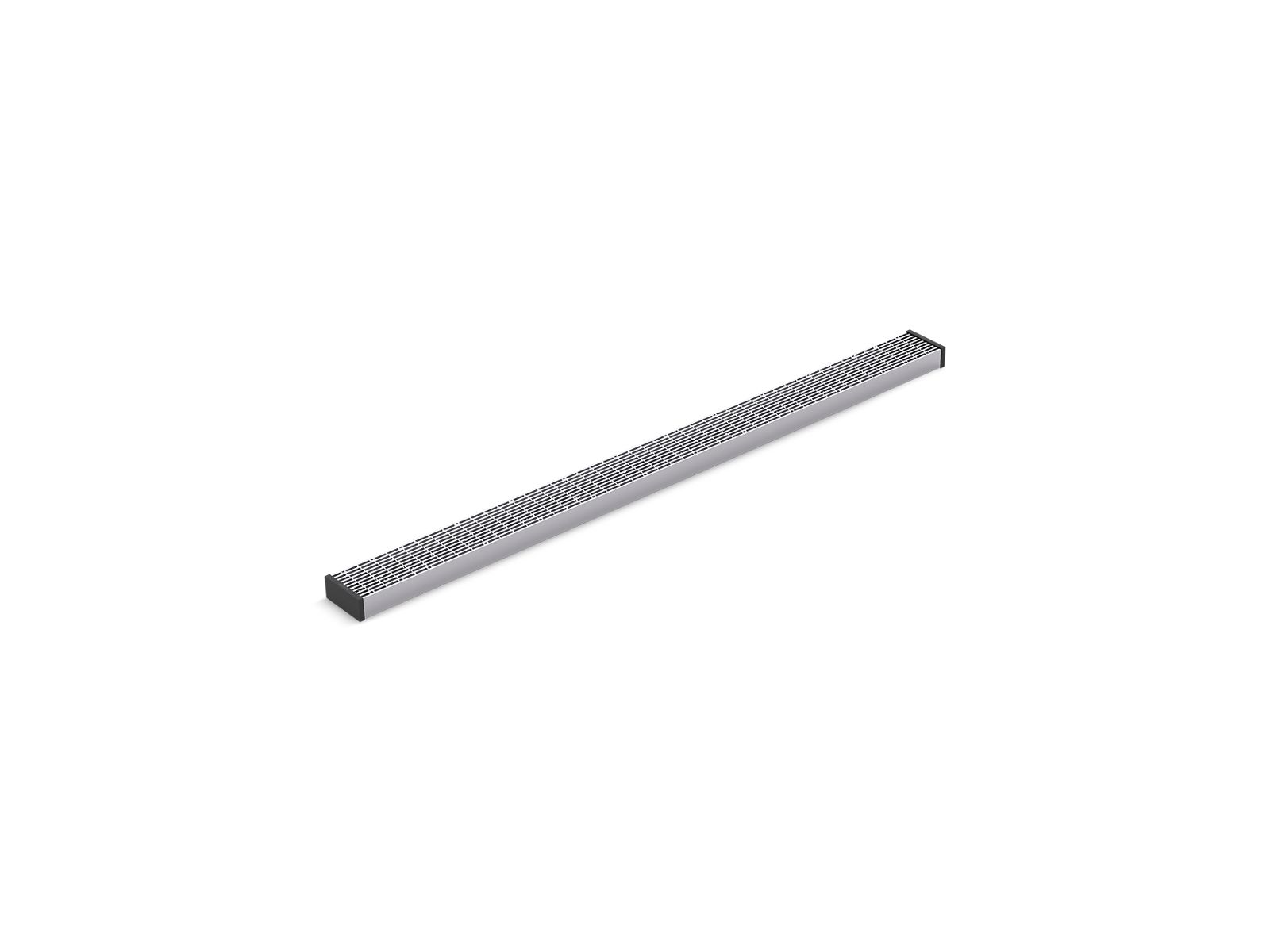

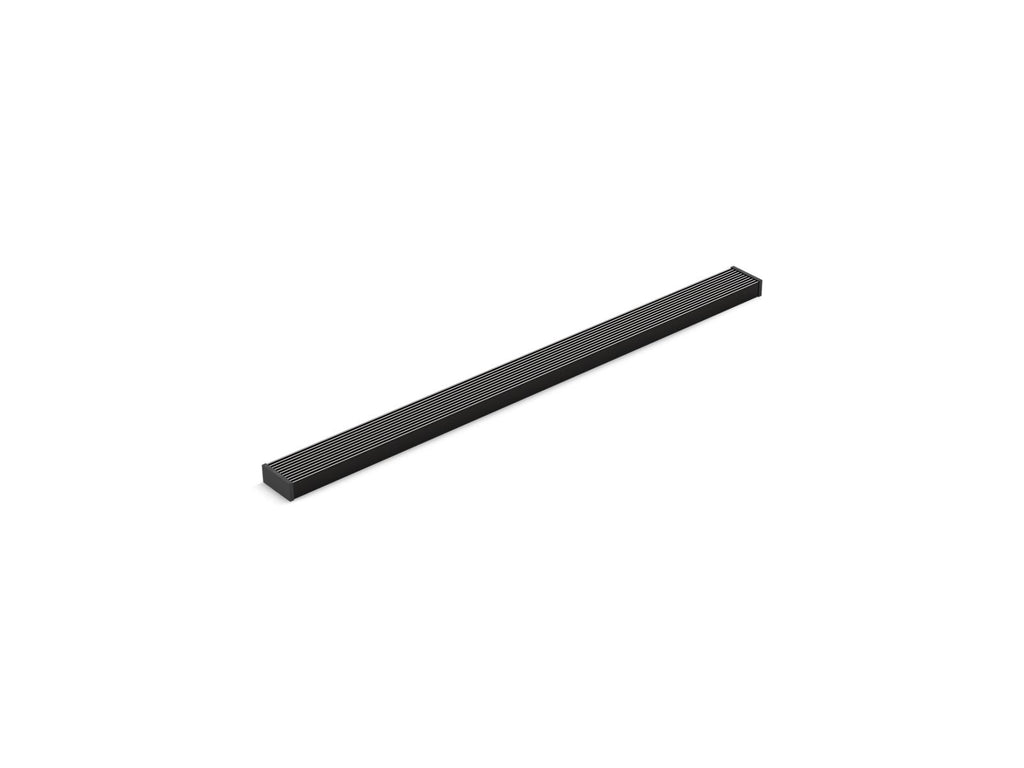

Incorporate this easy-to-install, linear shower drain into your next contemporary shower project for an elegant, minimalist look with maximum function. This innovative drain solution delivers the best-in-class quality you’ve come to expect from KOHLER, including lightweight, durable, easily trimmable drain channel inserts featuring precision-machined grate patterns and anodized scratch-resistant finishes. Available in different patterns, finishes, and sizes to complete your custom home or commercial shower installation.
- Rigid, precision-machined lattice grate pattern offers best-in-class drain aesthetic.
- Easily field-trimmable to fit any showering space.
- Lightweight yet durable grate insert is easy to handle during installation and throughout product life.
- Thread-in, rubber-capped grate feet offer secure placement within drain channel.
- Feet are height-adjustable up to one inch and easily accessible through the top of grate for a faster, more precise installation.
- Includes universal hardware kit with mounting feet in two lengths, stainless steel lift key, and KOHLER-branded grate end caps.
- Requires K-80646 Kohler 2-1/2" linear drain channel.
- Field trimmable to accommodate customize size and installation.
Specification & Views
3DDWG | 3DDWGSymbol | 3DDXF | 3DDXFSymbol | 3D3DS | 3DOBJ | 3DSketchup | BIMRevit | 3DRevit | InstallationWithoutSPPDF | SpecPDFFileName | InteractiveSVG | IMGISO | IMGDetail1 | IMGDetail2 | IMGGlam | IMGPARTIALROOMVIEW | IMGCLOSEROOMVIEWProductDetail |
