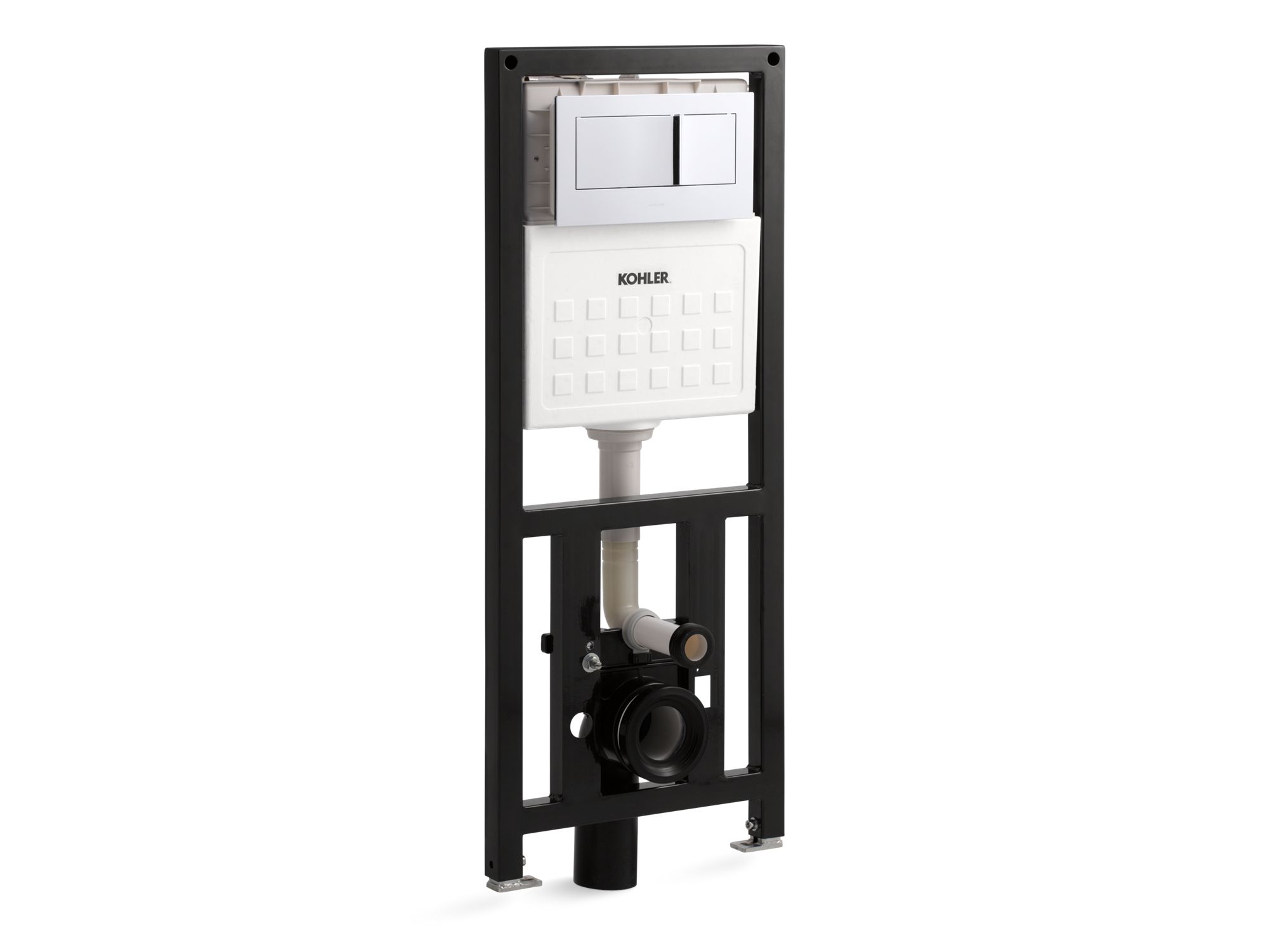

With its insulated tank, durable steel frame, large flush actuator opening, and adjustable height, this in-wall tank and carrier system provides unparalleled installation flexibility.

Features

- Robust steel frame
- Insulated tank to prevent sweating
- Large flush actuator plate opening can be removed for easy access to inner tank
- Adjustable height allows bowl to be set anywhere between 15-3/8" - 28-1/2" (391 - 724 mm) from floor
- Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
- Works with the K-6299 or K 6918 bowls to create a complete solution
- Dual-flush technology allows you to choose between a full or partial flush

Installation

- Durable steel frame carrier is installed on 2" x 6" (51 x 152 mm) studs behind the wall. See installation guide and installation video for more detailed information
- When installed per KOHLER installation instructions, the KOHLER in-wall tank and carrier system can support up to 880 lbs. (399 kg) without damage
- Supply line sold separately
- Requires 1201721 electrical box kit when pairing bidet seat with bowl

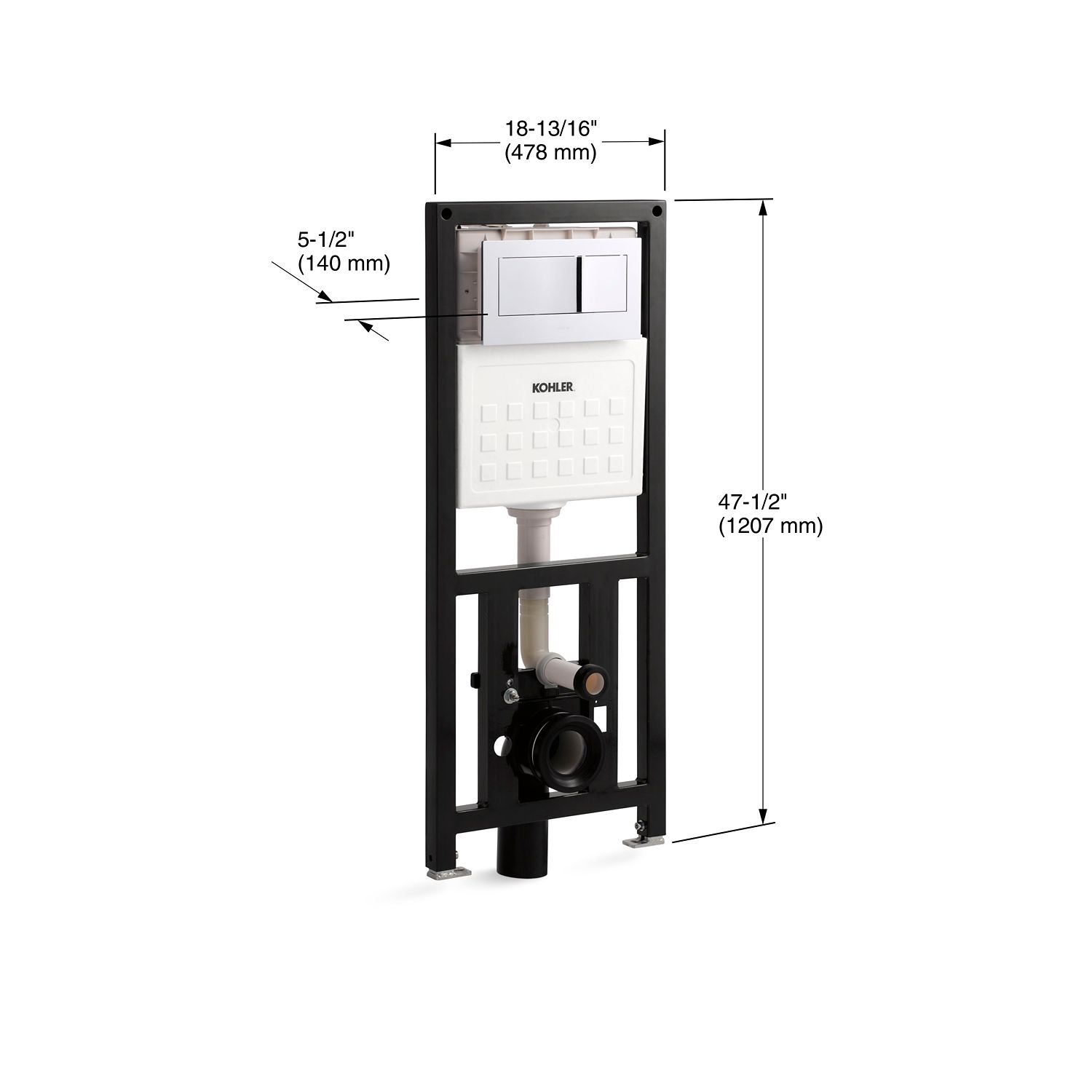

Specification & Views
