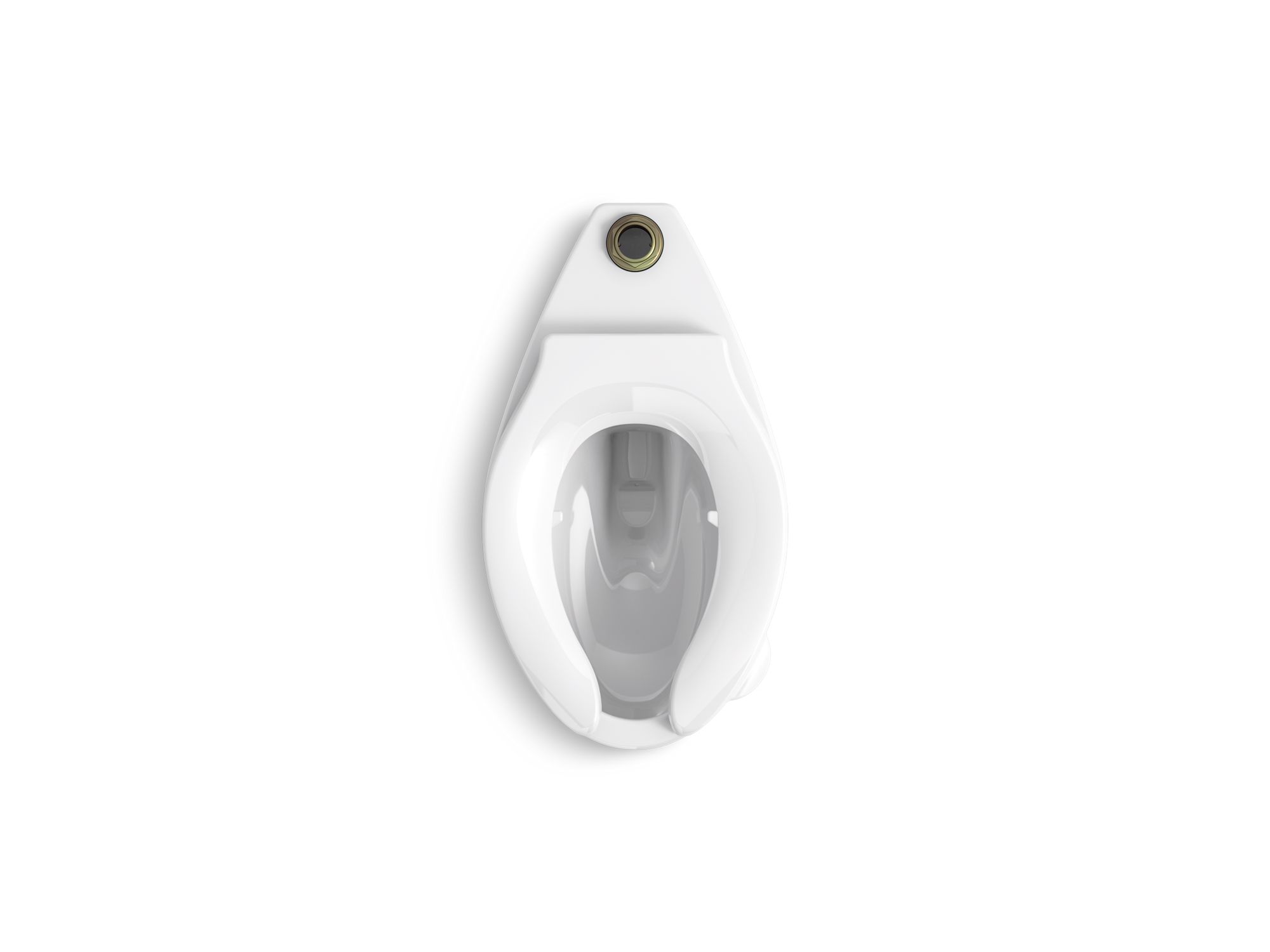

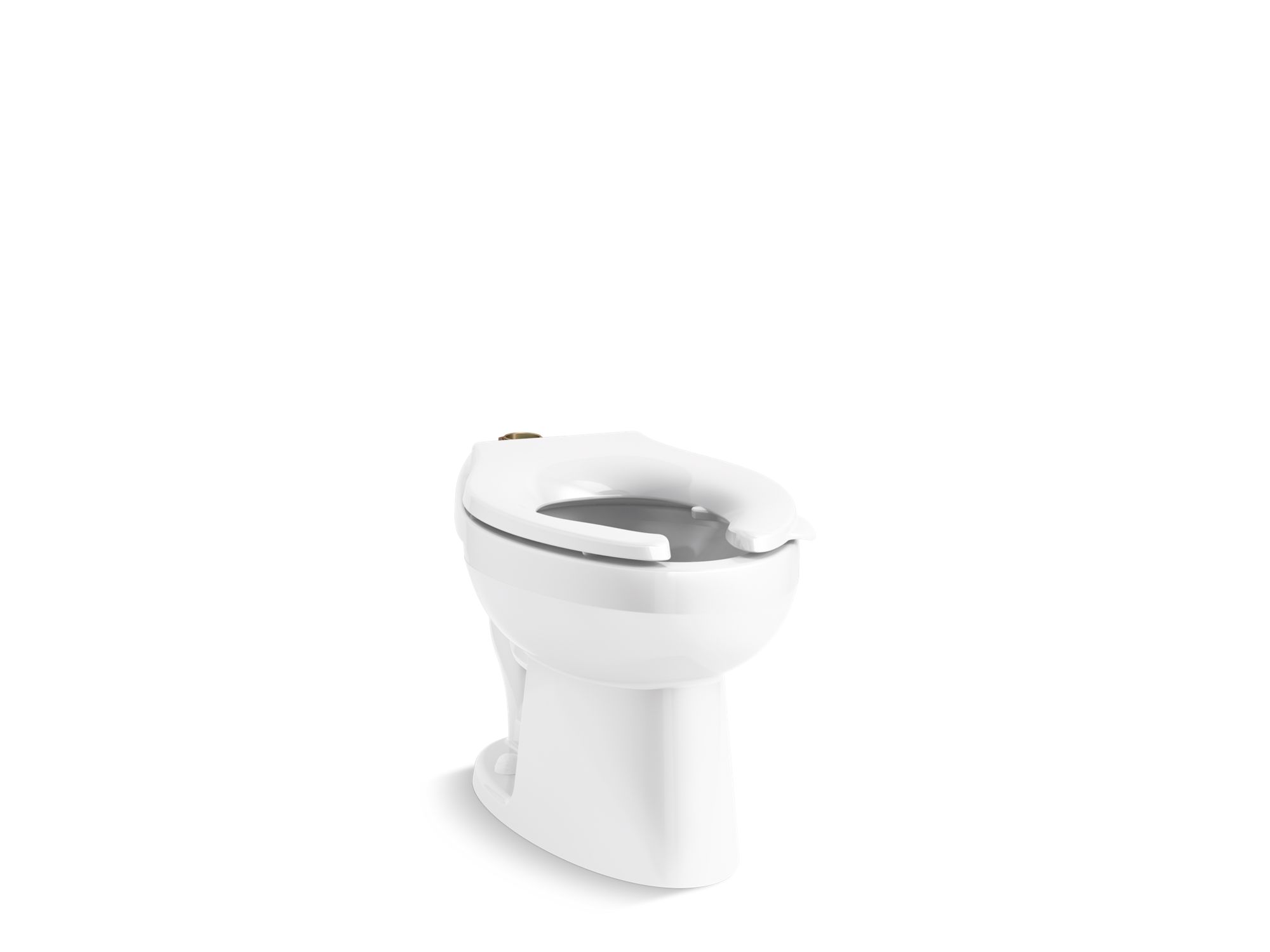

Wellcomme™ Ultra Floor-mounted top spud flushometer bowl with bedpan lugs White
customers are viewing this product
The Wellcomme Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design with bedpan lugs. Measuring 15-1/4" to the top of the rim, the Wellcomme Ultra is perfect for smaller restrooms and stalls. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. This Wellcomme Ultra is listed from 1.1 to 1.6 gpf but can operate at 1.0 gpf. It performs well at every flush interval, making it uniquely effective with dual flush valves. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.
Features
- Elongated bowl, standard height.
- 1-1/2" (38 mm) top spud.
- Bedpan lugs. Available with antimicrobial finish K-96053-SSL.
- 10" or 12" (254 or 305 mm) rough-in.
- Replaces Wellcomme K-4350-L and Wellworth K-4406-L.
- 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf) or 1.6 gpf (6.0 lpf) depending on flushometer specified.
- 10" x 7" (254 mm x 178 mm) water surface.
- 2-1/8" (54 mm) fully-glazed trapway.
Material
- Vitreous china.
Technology
- Design to outperform the competition in bowl cleanliness and plug resistance.
- Reduced splashing.
- Maximum waste removal.
- Improved toilet seat cover removal.
- Excellent bowl rinse.
- Engineered to flush effectively in buildings with low supply pressure and flow. Tested to 25 psi and 19 gpm.
- Maximum drailine carry at all flush volumes per ASME Standard.
Installation
- 26-3/8" L x 14-7/8" W x 15-1/4" H.
- Hauteur standard de la cuvette.
- Siège non compris.
Specification & Views
3DRevit | GIFLineArt | IMGISO | IMGTOP |
