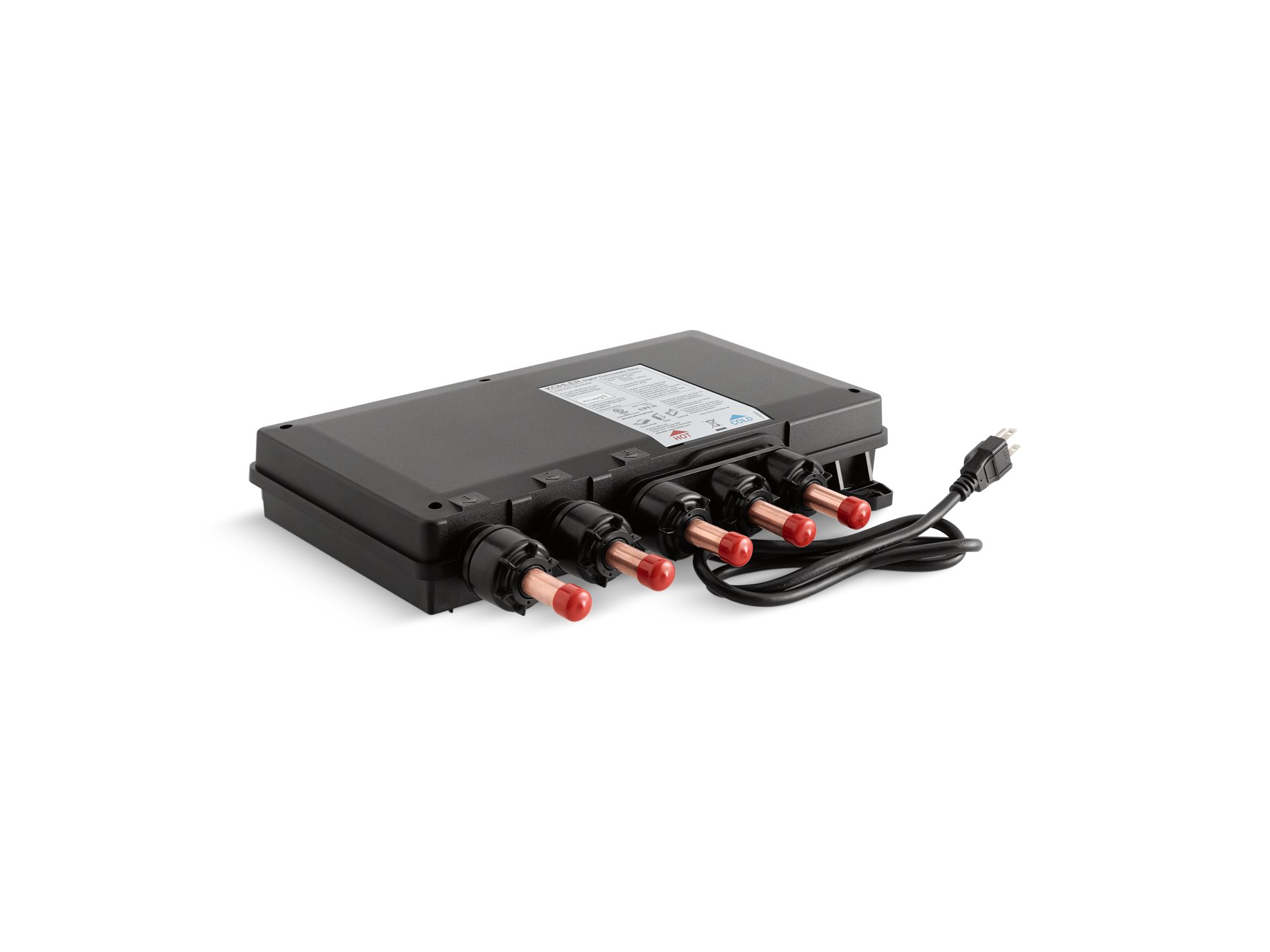

Dtv+™ Three-Port Digital Thermostatic Valve Not Applicable

In stock
557-K1-NA
KOHLER
$1,420.50

$1,420.50
customers are viewing this product

For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital system, and its easy plug-and-go design makes installation simple. With three independently controllable outlet ports, this valve is ideally suited for applications where up to three shower outlets are required. Additionally, with the DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.

Features

- Digitally controlled thermostatic mixing valve
- Antiscald protection
- Three independently controllable 1/2" outlets with copper tube connections
- Up to 13 gpm (49.2 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 8 gpm (30.3 lpm) from one outlet
- 1/2" (12.7 mm) inlets with copper tube connections
- High-temperature limit setting for additional protection

Material

- Reinforced engineering-grade thermoplastic body

Installation

- Can be mounted within a standard 2x4 wall cavity
- Prewired with three-prong plug for connection to 110 V AC receptacle

Specification & Views

GIFLineArt | 3DRevit | SpecPDFFileName | InteractiveSVG | BIMRevit | YouTubeVideo | YouTubeVideo | YouTubeVideo | HomeownersGuide | InstallationWithoutSPPDF | IMGISO |
