In-wall tank and carrier system for 2"x4" installations Not Applicable
customers are viewing this product

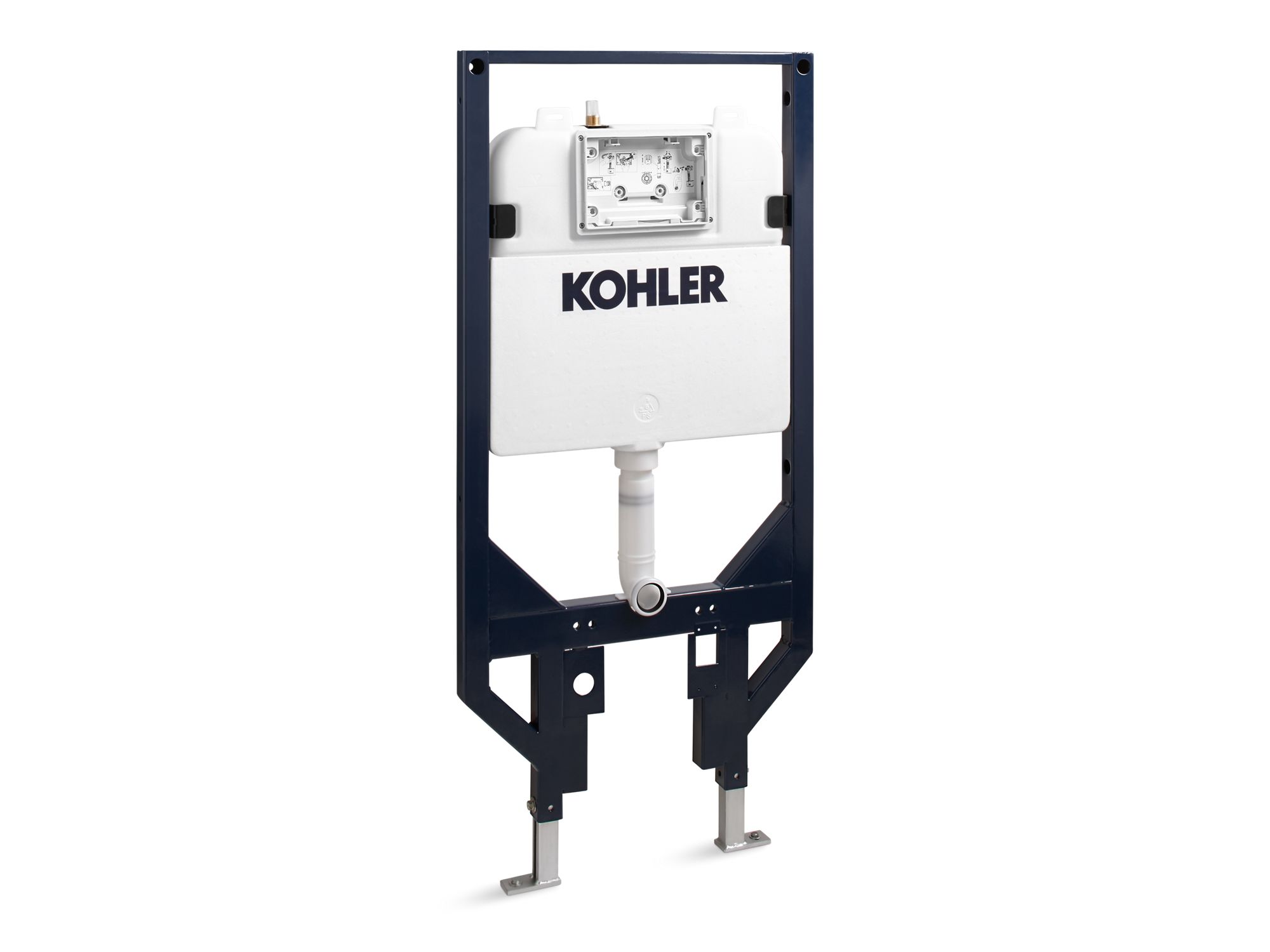

With its insulated tank, durable steel frame, large flush actuator opening, and adjustable height, this in-wall carrier provides unparalleled installation flexibility.
Features
- Robust steel tube frame.
- Insulated tank to prevent sweating.
- Large flush actuator plate opening can be removed for easy access to inner tank.

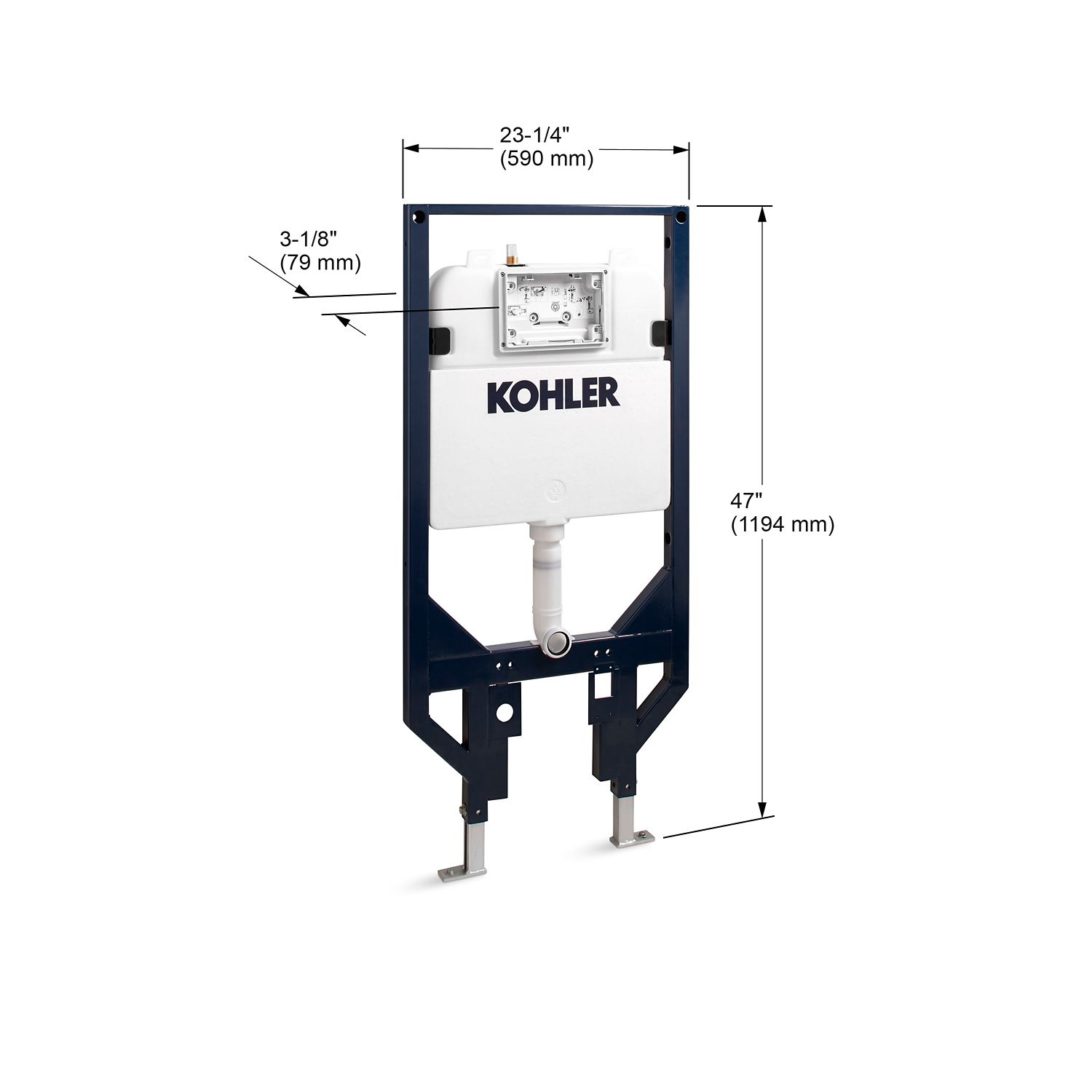

- Adjustable height allowing the bowl to be set anywhere from 15-3/8 inches to 28-1/2 inches from floor.
- Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf).
- Works with K-6299 or K-6918 bowls and K-4177, K-8857, K-75891, K-5413, K-75890, or K-77271 flush actuator plates to create a complete solution.
Material
Technology
- Dual-flush technology allows you to choose between a full- or partial-flush.
Installation
- Durable steel frame carrier is installed on 2"x6" studs behind the wall. See installation guide and installation video for more detailed information.
- When installed per KOHLER's installation instructions, the KOHLER in-wall tank and carrier system can support up to 880 lbs. without damage.
- Supply line sold separately.
Specification & Views
3D3DS | 3DOBJ | 3DSketchup | 3DDWGSymbol | 3DDXFSymbol | DWGFrontView | DWGPlanView | DWGSideView | DXFFrontView | DXFPlanView | DXFSideView | GIFLineArt | IMGISO | IMGDetail1 | IMGDetail2 |
