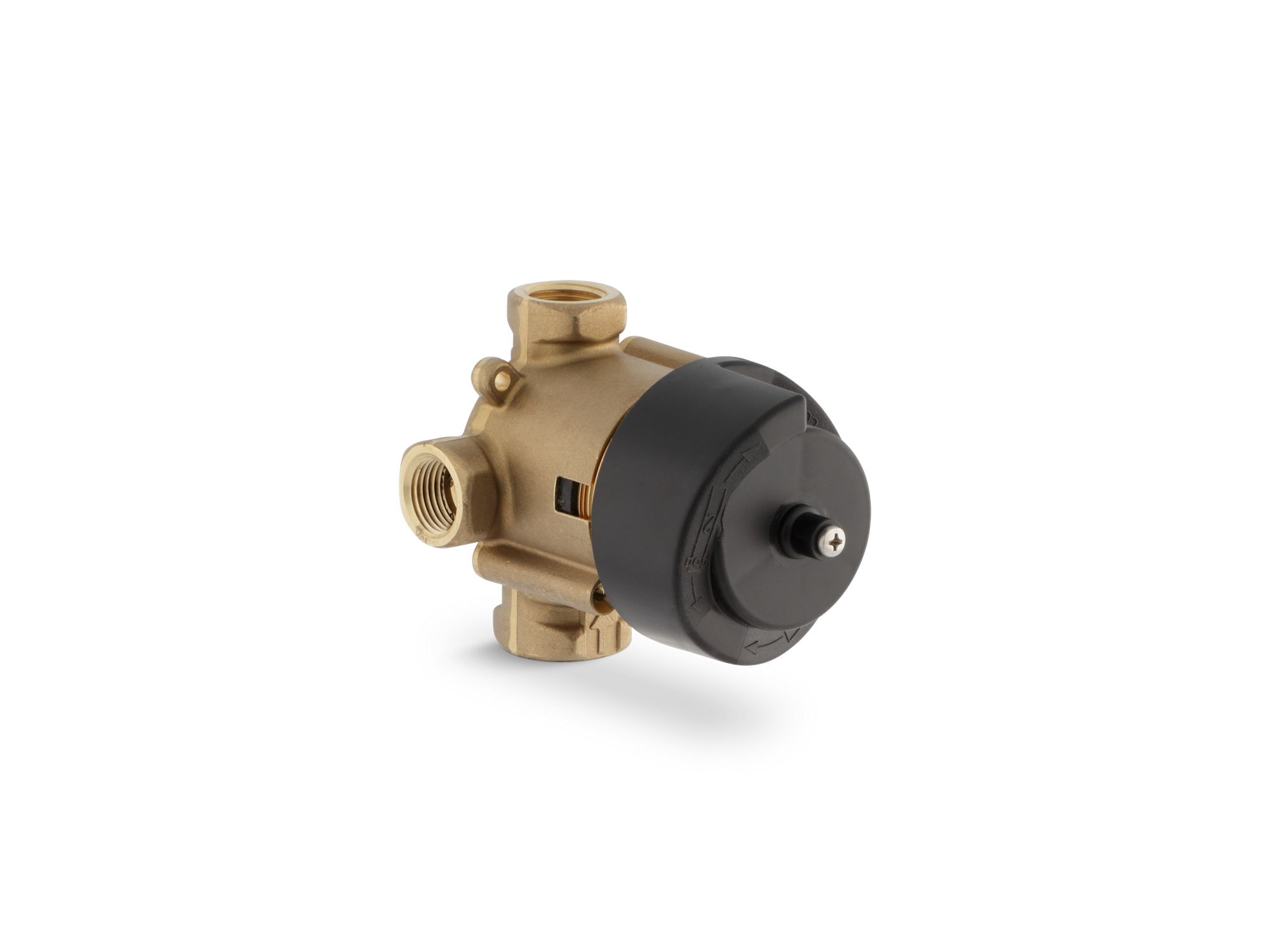

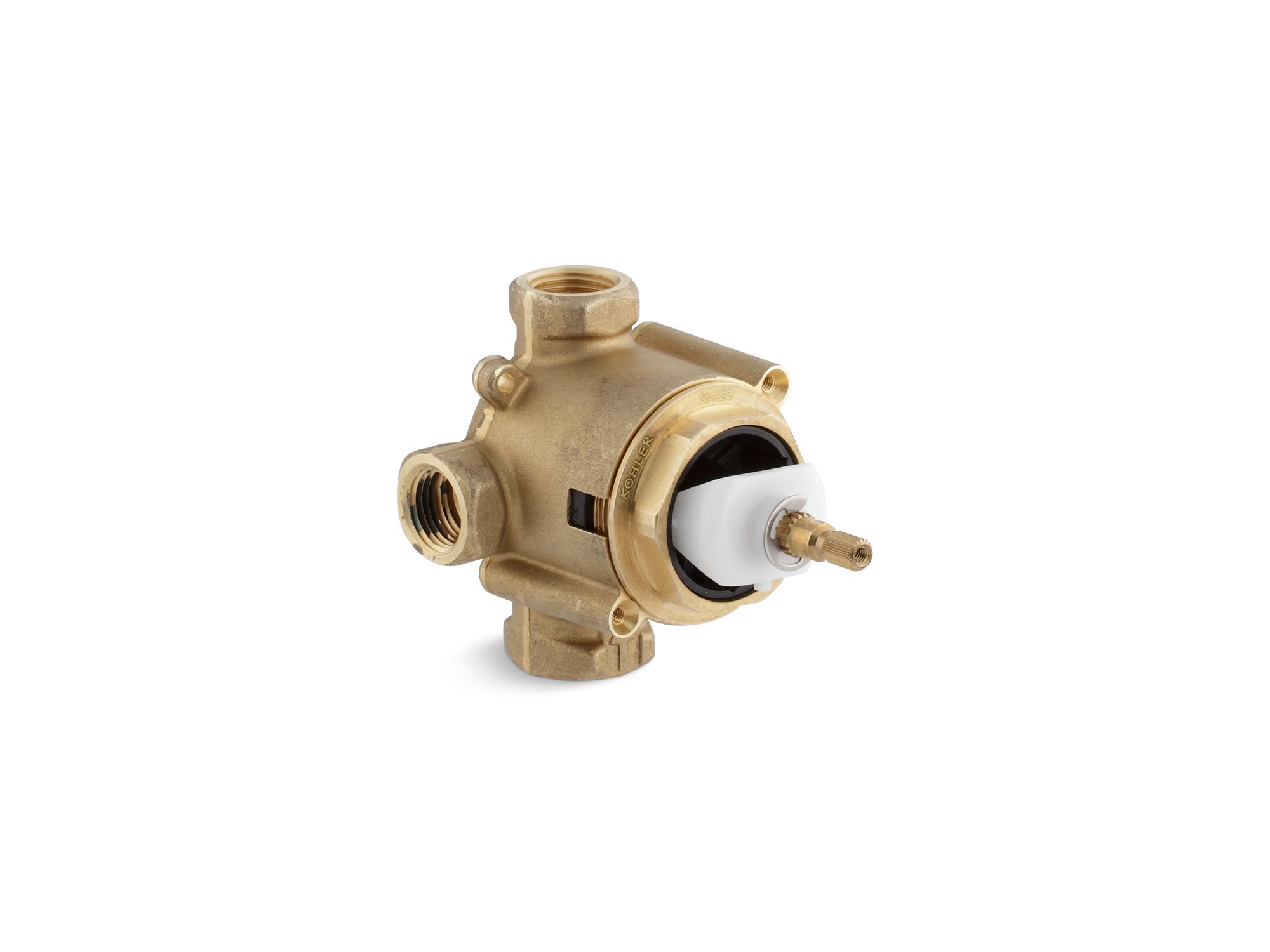

Mastershower® 2- Or 3-Way Diverter Valve Not Applicable

In stock

customers are viewing this product

The MasterShower diverter valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components, and can also easily be configured as a two-way diverter valve.


- Diverts water flow to up to three separate components/outlets
- Components/outlets can only be operated individually
- Supplied as a three-way diverter valve (360 degree handle rotation) but can be configured onsite for two-way operation (120 degree handle rotation)
- Single-handle operation
- Using 1 outlet: 18 gpm flow rate at 45 psi; using 2 outlets: 20.8 gpm at 45 psi
- One 3/4" female NPT inlet connection
- Three 1/2" female NPT outlet connections
- Requires additional valve/s to control On/Off operation and temperature (sold separately)
- Requires transfer/diverter valve trim (sold separately)


- Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Specification & Views

SpecPDFFileName | GIFLineArt | IMGDetail1 | 3DRevit | InteractiveSVG | BIMRevit | InstallationWithoutSPPDF | 3D3DS | 3DDWG | 3DDXF | 3DOBJ | DWGFrontView | DWGPlanView | DWGSideView | DXFFrontView | DXFPlanView | DXFSideView | 3DDWGSymbol | 3DDXFSymbol | IMGISO | EnvironProdDecl |
