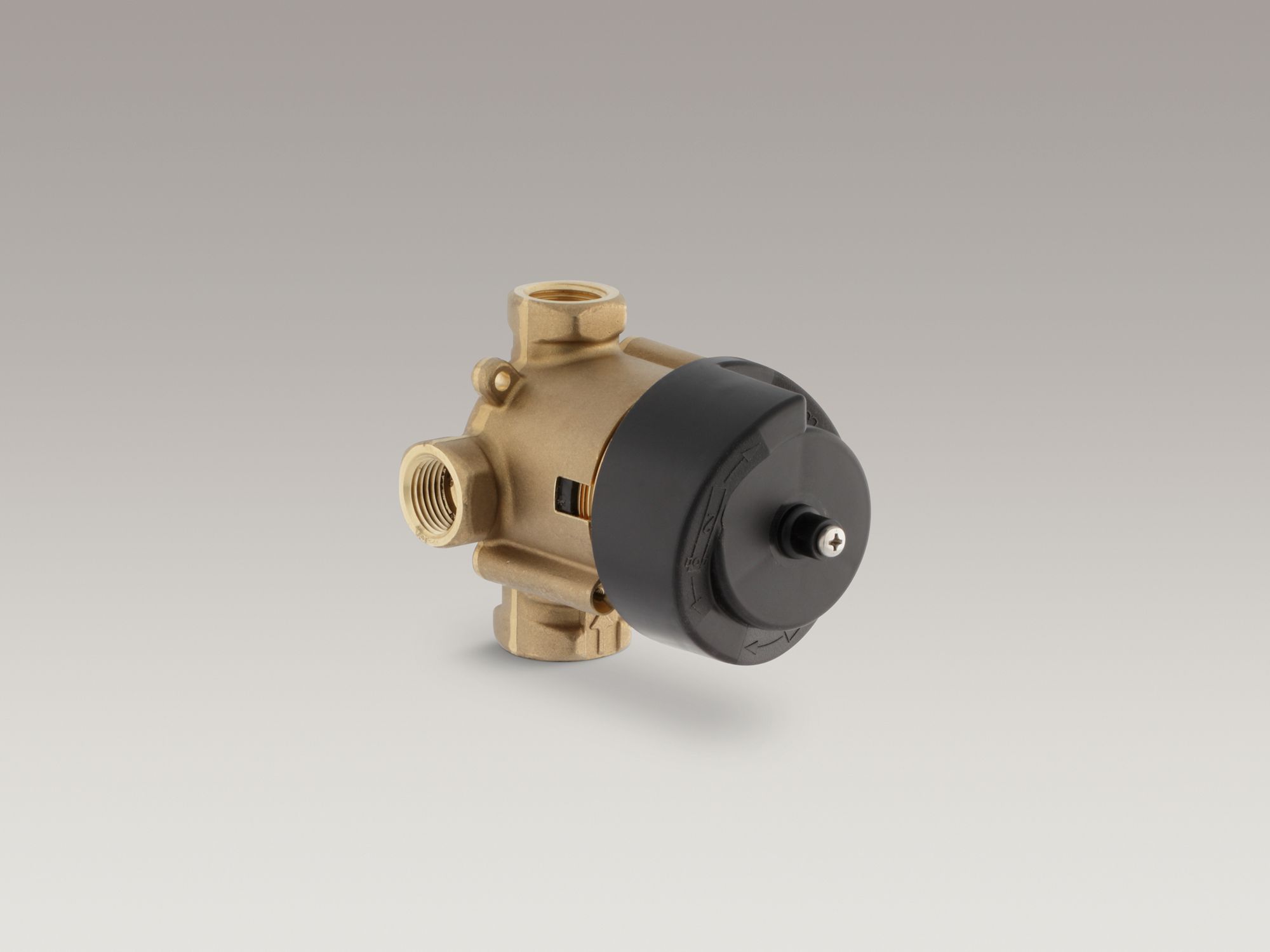

Mastershower® 3/4" 2- Or 3-Way Transfer Valve Not Applicable

In stock

customers are viewing this product

The MasterShower transfer valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components to six different outputs, and can also easily be configured as a two-way transfer valve.


- Transfers water flow to up to three separate components/outlets
- Components/outlets can be operated individually or in any combination of two components at the same time
- Supplied as a three-way transfer valve (360 degree handle rotation) but can be configured onsite for two-way operation (120 degree handle rotation)
- Single-handle operation
- Using 1 outlet: 18 gpm flow rate at 45 psi; using 2 outlets: 20.8 gpm at 45 psi
- One 3/4" female NPT inlet connection
- Three 1/2" female NPT outlet connections
- Requires additional valve/s to control On/Off operation and temperature (sold separately)
- Requires transfer/diverter valve trim (sold separately)


- Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Specification & Views

GIFLineArt | 3DRevit | SpecPDFFileName | IMGDetail1 | InteractiveSVG | BIMRevit | InstallationWithoutSPPDF | 3D3DS | 3DDWG | 3DDXF | 3DOBJ | 3DDWGSymbol | 3DDXFSymbol | IMGISO | EnvironProdDecl |
