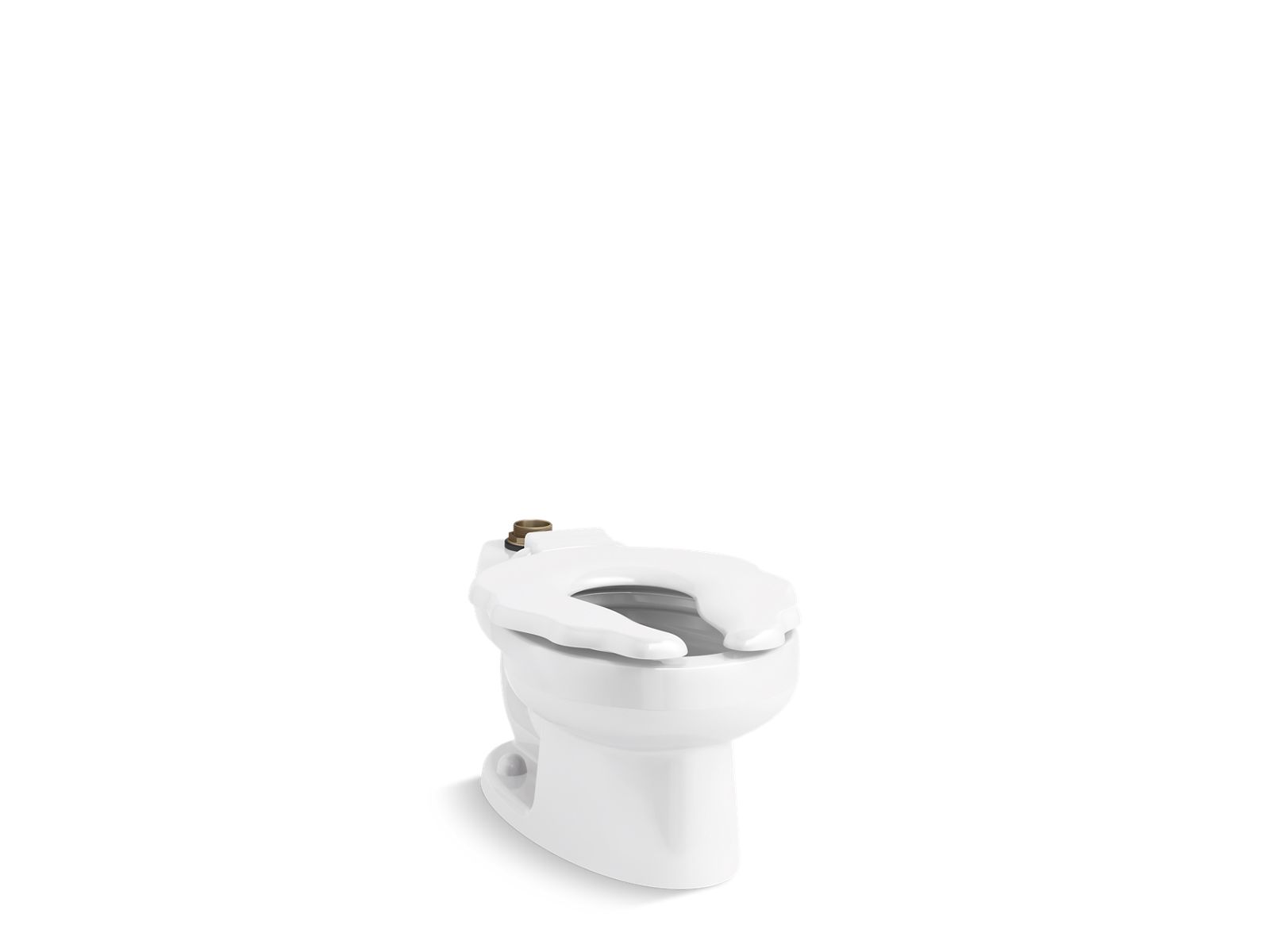

Just the right size! The Primary toilet offers a low bowl height to accommodate users in kindergartens, grade schools, daycare centers, and children's wards. Precision-engineered to meet the challenges of demanding conditions, this model includes a custom toilet seat equipped with a smaller opening and scalloped side handholds to make it more comfortable for children.

Features

- Elongated, 10-1/2" height bowl
- 1-1/2" (38 mm) top spud
- 10" x 7" (254 mm x 178 mm) water surface
- 1-7/8" (48 mm) fully glazed trapway
- 10" or 12" (254 or 305 mm) rough-in
- 1.28 gpf - 1.6 gpf (4.8 - 6.0 lpf) flush range
- The ultra-low water consumption is ideal for water conservation and can help earn Water Efficiency points in the LEED® Green Building Rating System
- Includes toilet seat with scalloped handhold locations
- Also available with antimicrobial finish K-96064-SS

Material

- Vitreous china

Technology

- Designed to outperform competitors in bowl cleanliness and plug resistance
- Excellent bowl rinse
- Maximum drain line carry at all flush volumes per ASME standard

Installation

- Children's height bowl
- Replaces Primary K-4321 and K-4384. Height and footprint may vary

Specification & Views

3D3DS | 3DOBJ | 3DRevit | 3DSketchup | 3DDXFSymbol | DWGFrontView | DWGPlanView | DWGSideView | DXFFrontView | DXFPlanView | DXFSideView | GIFLineArt | IMGISO | IMGTOP | EnvironProdDecl | 3DDWGSymbol | SpecPDFFileName | InteractiveSVG | BIMRevit | 3DDWG | InstallationWithoutSPPDF |
