The new KOHLER Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from KOHLER's comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.

Features

- Project Pack: Supplied 12 per case.

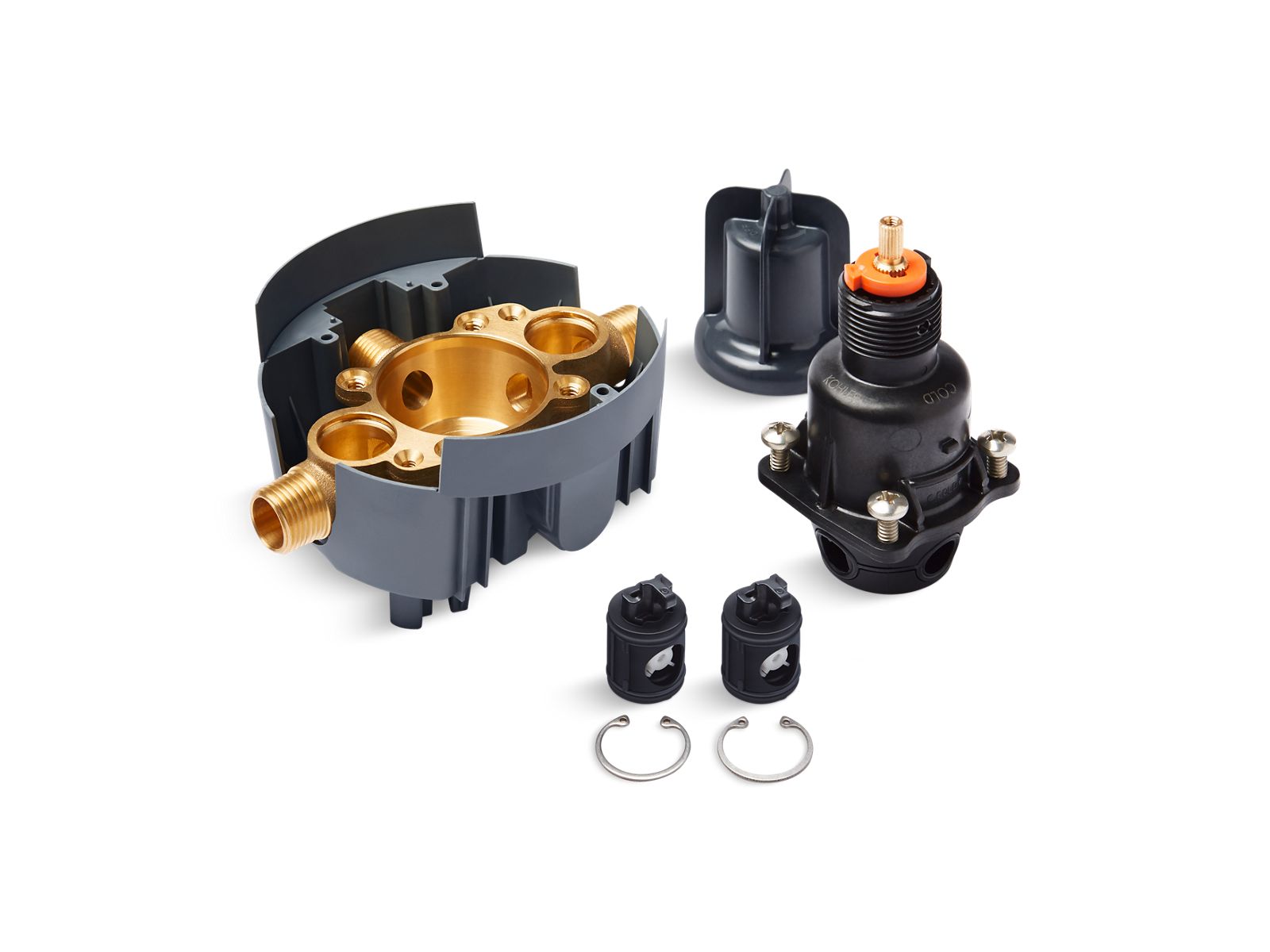

- Includes valve body, pressure balance cartridge, rough-in guide, and mudguard.
- 1/2" Universal NPT & direct sweat inlets & outlets, with stops.
- Service stops supplied loose (not factory installed in valve body) - ready for making sweat connections to valve inlets.
- Service stops include integral check valves.
- 5.0 gpm (18.9 l/min) maximum flow rate at 45 psi.
- Single lever design cycles from off through cold to hot.
- Provides temperature regulation and automatic anti-scald protection.
- One piece cartridge design simplifies installation and maintenance.
- Adjustable high temperature limit stop to control maximum water temperature.
- Requires valve trim to complete installation (sold separately).
- Robinetterie requise pour terminer l'installation (vendue separement).
- Conception de cartouche monopiece facilitant l'installation et l'entretien
- Limiteur de haute temperature reglable afin de controler la temperature maximale de l'eau
- Robinetterie requise pour terminer l'installation (vendue separement).

Material

- Forged de-zincification-resistant brass body provides long term reliability and resistance to aggressive water conditions.
- Corps en laiton forge resistant a la dezincification assurant la fiabilite a long terme et la resistance aux conditions d'eau agressive

Technology

- Pressure-balancing diaphragm technology maintains outlet temperature within +/- 3 degrees Fahrenheit during water pressure fluctuations.
- La technologie de membrane de regularisation de la pression maintient la temperature de sortie a +-3 degres Fahrenheit lors des fluctuations de pression

Installation

- Designed for use in standard, back-to-back and thin wall installations.
- Valve body features integral mounting locations and symmetrical valve inlets to simplify installation.
- Cartridge is reversible for installations where hot and cold supplies are reversed.
- Rough-in guide designed for both standard and thin wall installations.
- Installed valve rough-in can be flushed and pressure tested to 150psi max (air or water) without cartridge, using K-10351 Test Cap (supplied).
- Concu pour l'installation standard, dos a dos et en mur peu profond
- Le corps de robinet comprend des emplacements de montage integraux et des orifices d'entree symetriques pour simplifier l'installation
- Cartouche reversible pour l'installation la ou les conduites d'eau chaude et froide sont inversees.

Specification & Views
