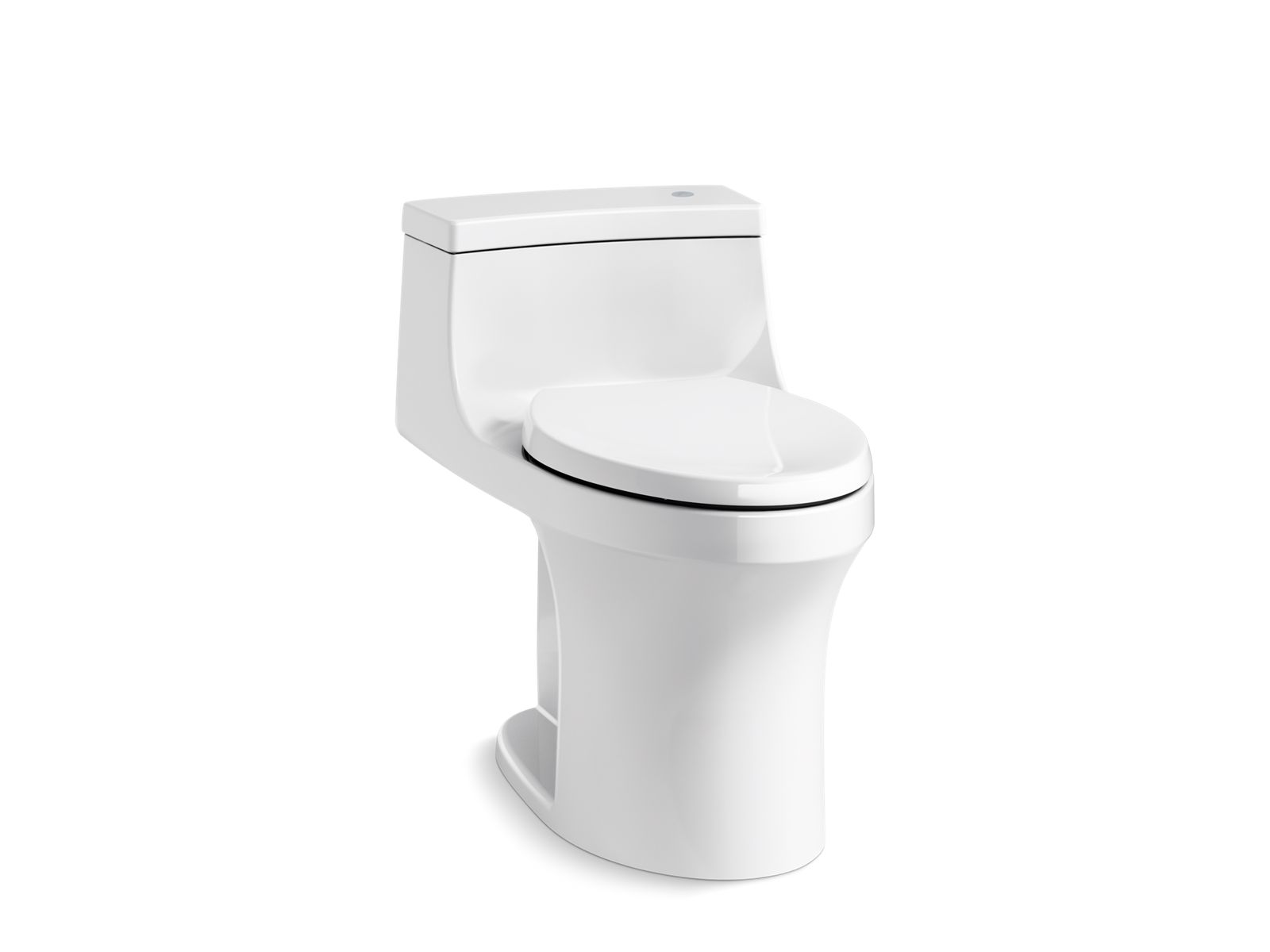

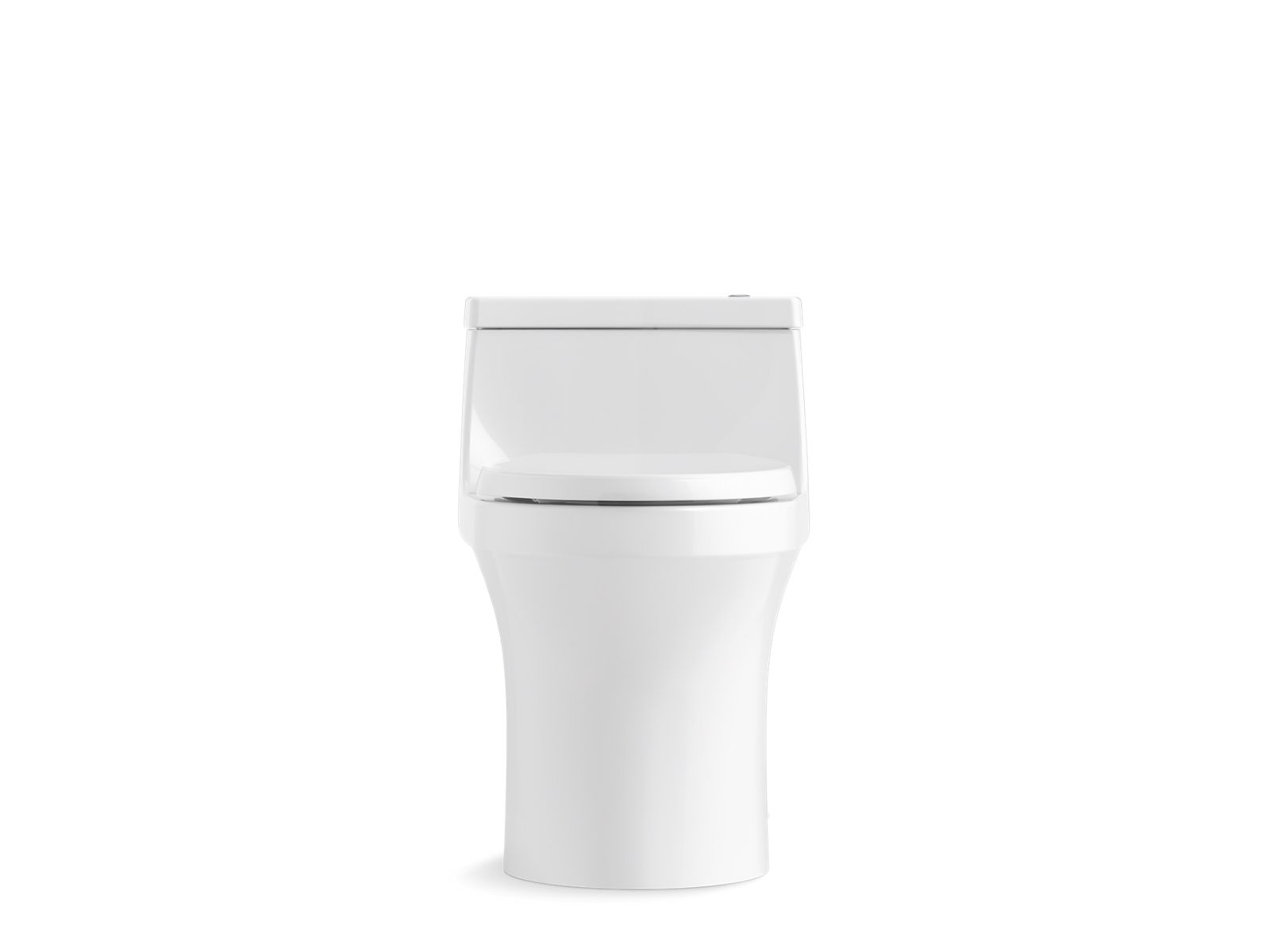

The San Souci one-piece toilet offers a sleek, contemporary design combined with KOHLER touchless flush. Just hold your hand over the tank sensor to activate the flush. No handle to touch means fewer germs to pick up or leave behind. This toilet features innovative AquaPiston technology, a patented flush engine that delivers a fast, powerful, and virtually plug-free flush. A 1.28-gallon flush provides significant water savings of up to 16,500 gallons per year, compared to a 3.5-gallon toilet, without sacrificing performance.

Features

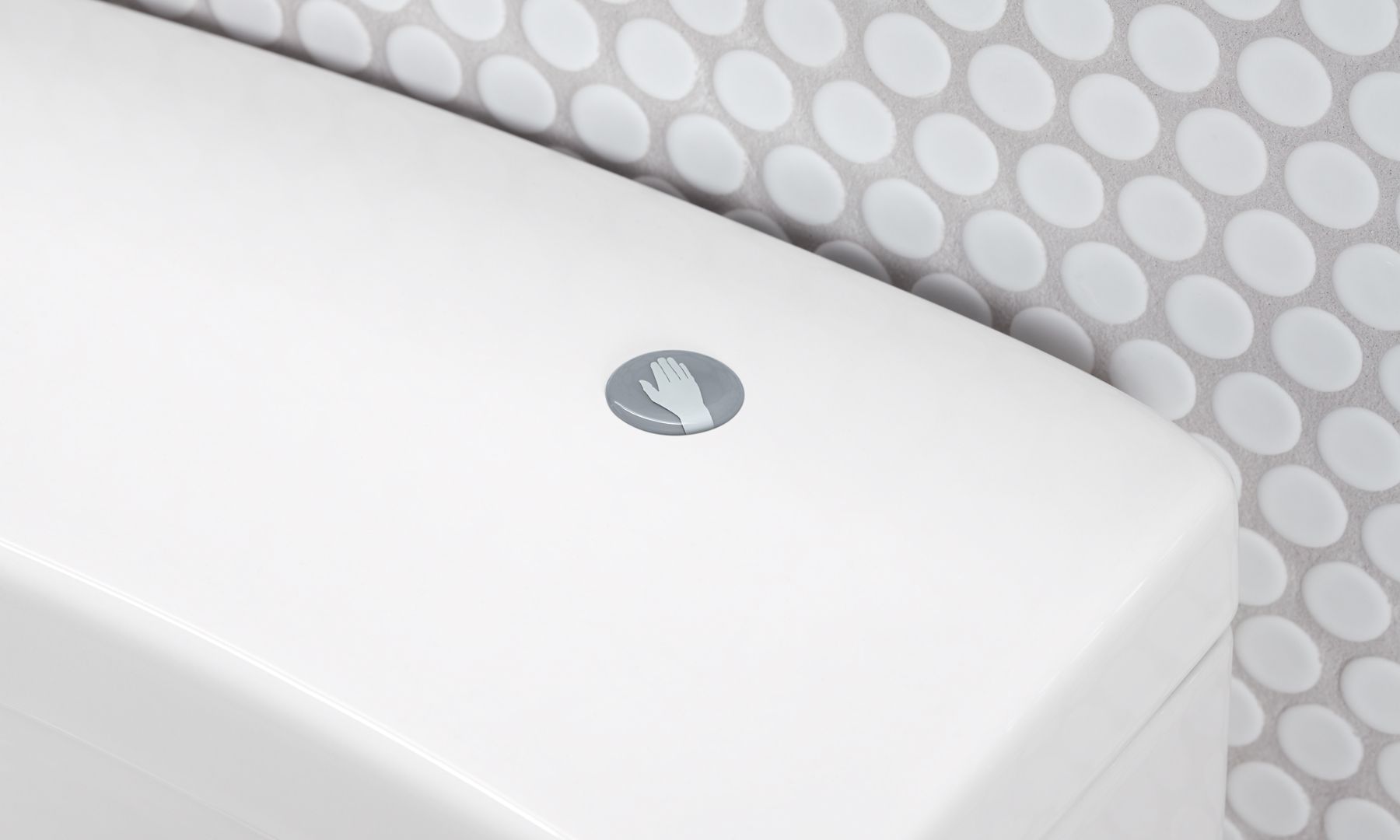

- Flush is activated by a no-touch sensor mounted inside the tank
- Powered by 4 AA batteries (included)
- One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design
- Compact elongated bowl offers added comfort while occupying the same space as a round-front bowl
- Low-profile design
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- 1.28 gpf (4.8 lpf)

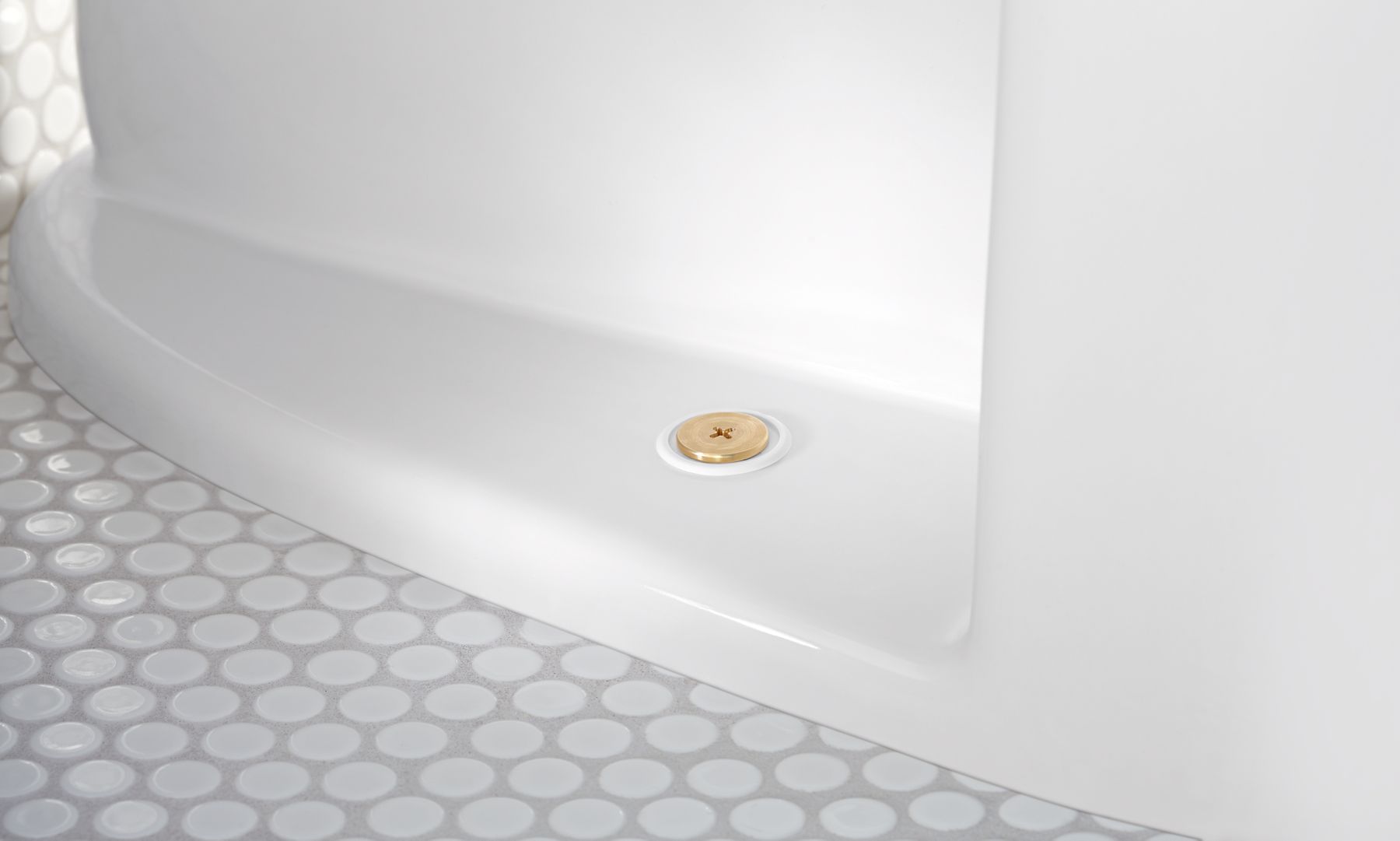

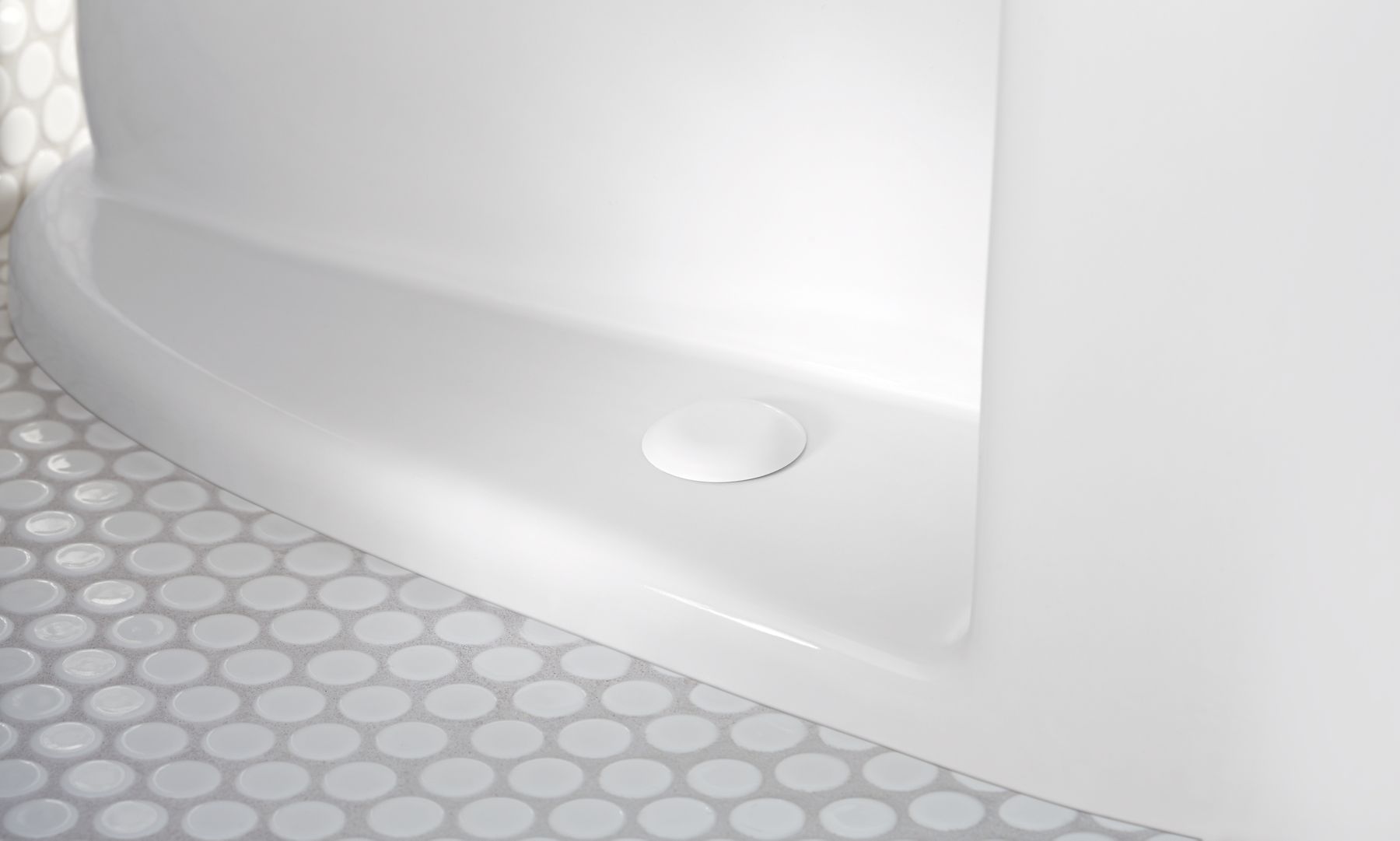

- Concealed trapway and Clean Caps® low-profile bolt caps facilitate easier cleaning and enhance design
- Includes Reveal® Quiet-Close™ seat
- When batteries are low, the unit will beep five times at half-second intervals when activated to indicate it's time to replace them
- Touchless has no impact on water usage

Technology

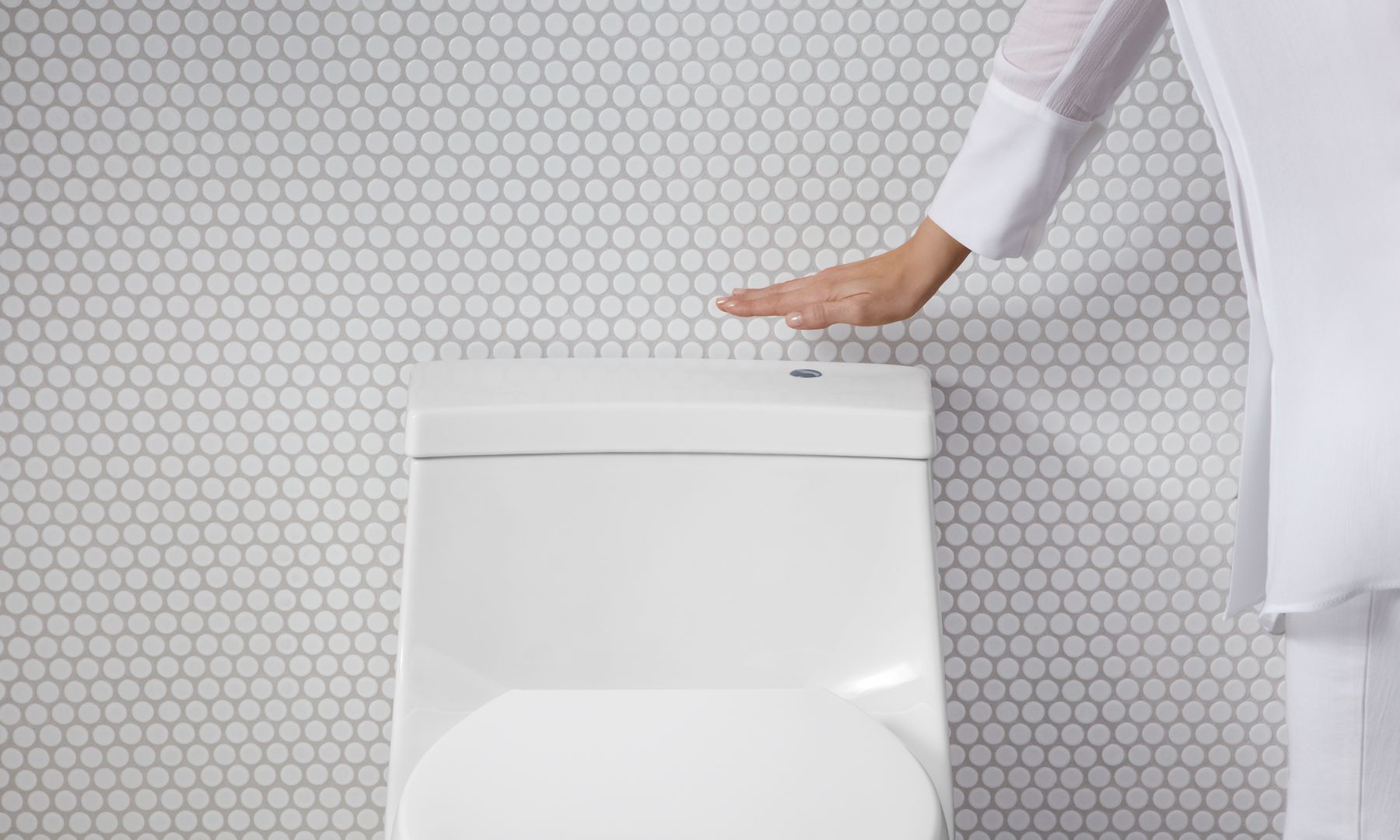

- Touchless module projects a field through the top of the tank lid that senses your hand, causing the toilet to flush
- Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing
- AquaPiston® canister allows water to flow into the bowl from all sides (360°), increasing the power and effectiveness of the flush
- Flush valve's 3:2 ratio harnesses the natural force of gravity and optimizes flush performance
- Durable canister design has 90% less exposed seal material than a 3" flapper for leak-free performance
- Light-touch canister flush requires a lower actuation force than a flapper

Installation

- Touchless only adds three simple steps to installation
- Standard 12" (305 mm) rough-in
- DryLock® system saves installation time and helps prevent water leakage
- Supply line sold separately
