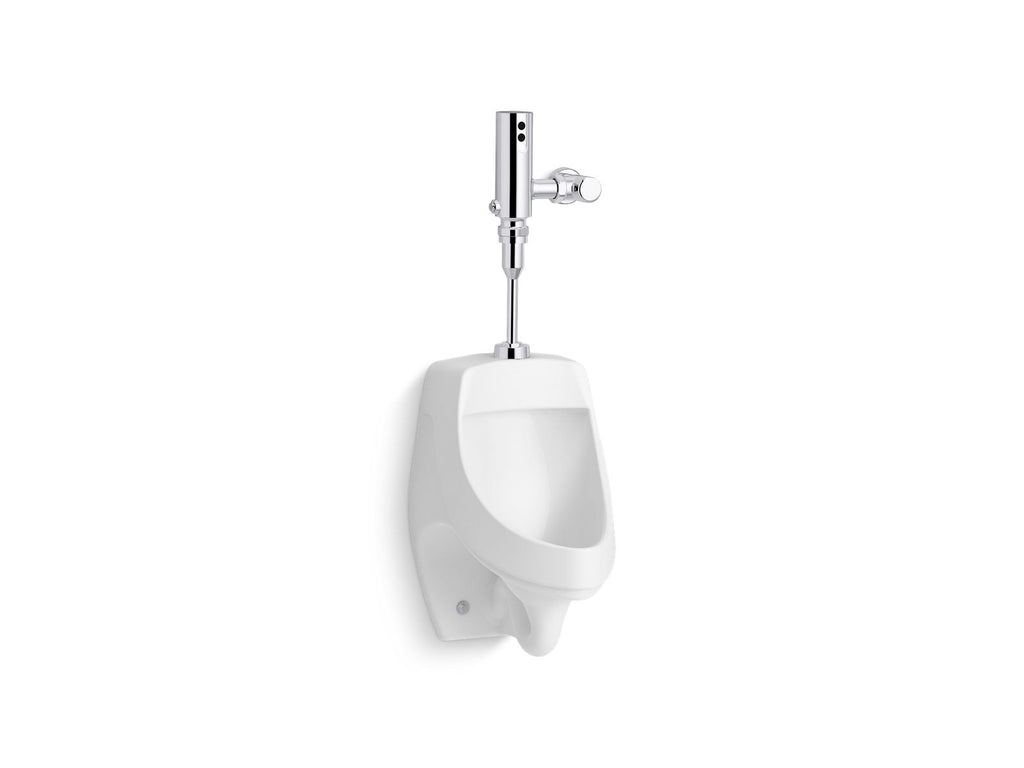

Dexter™ High-efficiency urinal with Mach® Tripoint® touchless 0.5 gpf HES-powered flushometer Not Applicable
customers are viewing this product
The straightforward design of the Dexter urinal brings KOHLER styling and functionality to any application. Equipped with a washout flush system and paired with a 0.5 gpf Mach Tripoint touchless flushometer, the Dexter urinal combines water savings with a compact wall print perfect for smaller commercial bathrooms. This Dexter urinal is ideal for customers who want to conserve water but do not want a waterless urinal.
Features
- Fixture and touchless flushometer combination is engineered for optimal performance.
- Washout urinal.
- Includes anti-backsplash wall.
- 0.5 gpf (1.9 lpf).
- 3/4" (19 mm) top spud.
- Flush valve activation distance is factory-set.
- No external flush volume adjustment ensures water conservation.
- 24-hour automatic sentinel flush keeps trapway fresh.
- Mechanical override enables flushometer to be used manually even during a power outage.
- Chloramine and chlorine resistance on all rubber components exposed to waterway.
- Locking stop cap provides protection against vandalism.
- 125-micron filter protects internal components.
- High back pressure vacuum breaker.
- Powered by a 30 year/875,000 cycle hybrid energy cell.
- For this combination, order K-5016-ET urinal and K-10UH00G20 flushometer.
Material
Technology
- Electronic infrared sensor with Tripoint® technology for accurate activation.
- Patented piston technology for superior flush volume accuracy.
Installation
Specification & Views
IMGISO | 3D3DS | 3DDWG | 3DDXF | 3DOBJ | 3DSketchup | 3DDWGSymbol | 3DDXFSymbol | SpecPDFFileName | DWGFrontView | DXFFrontView | DWGPlanView | DXFPlanView | DWGSideView | DXFSideView |
