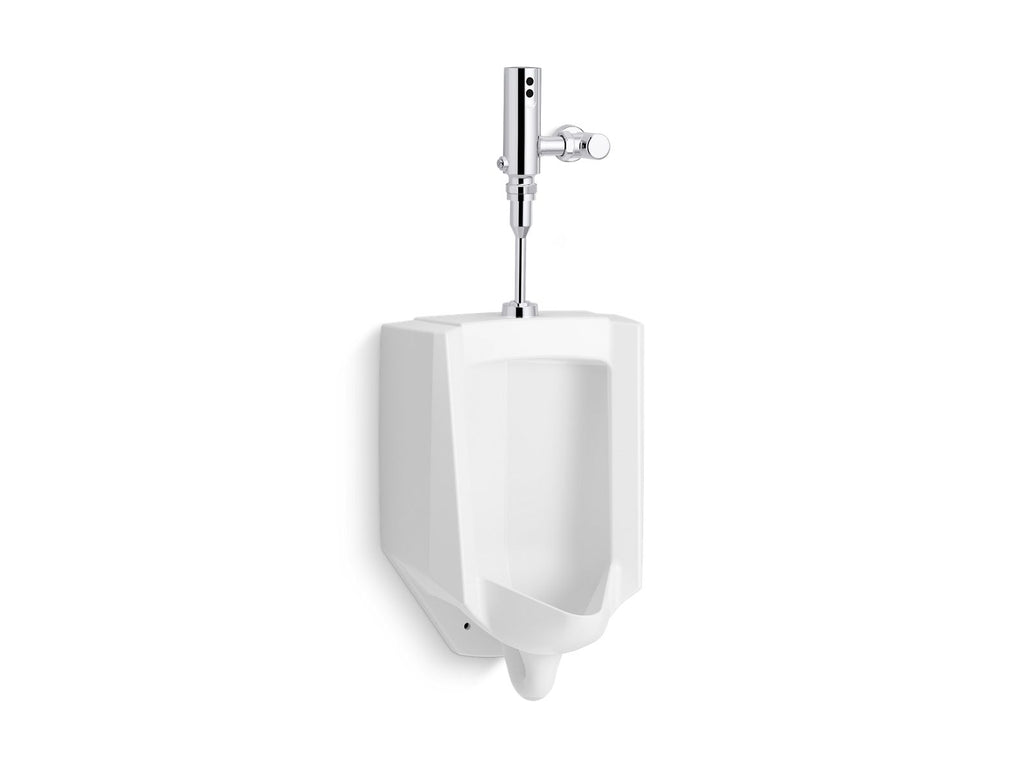

Bardon™ High-Efficiency Urinal With Mach® Tripoint® Touchless 0.5 Gpf Hes-Powered Flushometer Not Applicable

Out of stock (CONTACT US)

customers are viewing this product

The newly redesigned Bardon high-efficiency urinal provides flexible flushing options along with a bold new contemporary look. The Bardon operates in the range from 0.125 to 1.0 gpf. When paired with a 0.5 gpf Mach Tripoint touchless flushometer, this urinal is ideal for water conservation installations, and qualifies as a High-Efficiency Urinal (HEU) that can help a building earn Water Efficiency points in the LEED® Green Building Rating System.


- Fixture and touchless flushometer combination is engineered for optimal performance
- Washout urinal
- Includes anti-backsplash wall
- 0.5 gpf (1.9 lpf)
- 3/4" (19 mm) top spud
- Flush valve activation distance is factory-set
- No external flush volume adjustment ensures water conservation
- 24-hour automatic sentinel flush keeps trapway fresh
- Mechanical override enables flushometer to be used manually even during a power outage
- Chloramine and chlorine resistance on all rubber components exposed to waterway
- Locking stop cap provides protection against vandalism
- 125-micron filter protects internal components
- High back pressure vacuum breaker
- Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day
- For this combination, order K-4991-ET urinal and K-10UH00G20 flushometer


- Vitreous china urinal
- Brass flush valve with durable Polished Chrome finish


- Electronic infrared sensor with Tripoint® technology for accurate activation
- Patented piston technology for superior flush volume accuracy

Specification & Views

IMGISO | 3D3DS | 3DDWG | 3DOBJ | 3DDXF | 3DSketchup | 3DDWGSymbol | 3DDXFSymbol | SpecPDFFileName | DWGFrontView | DXFFrontView | DWGPlanView | DXFPlanView | DWGSideView | DXFSideView | EnvironProdDecl |
